Products
OBODENT dental equipmentfor the dental laboratory or the dental practicefor the highest demands in terms of form and function. Quality 100% made in Germany!

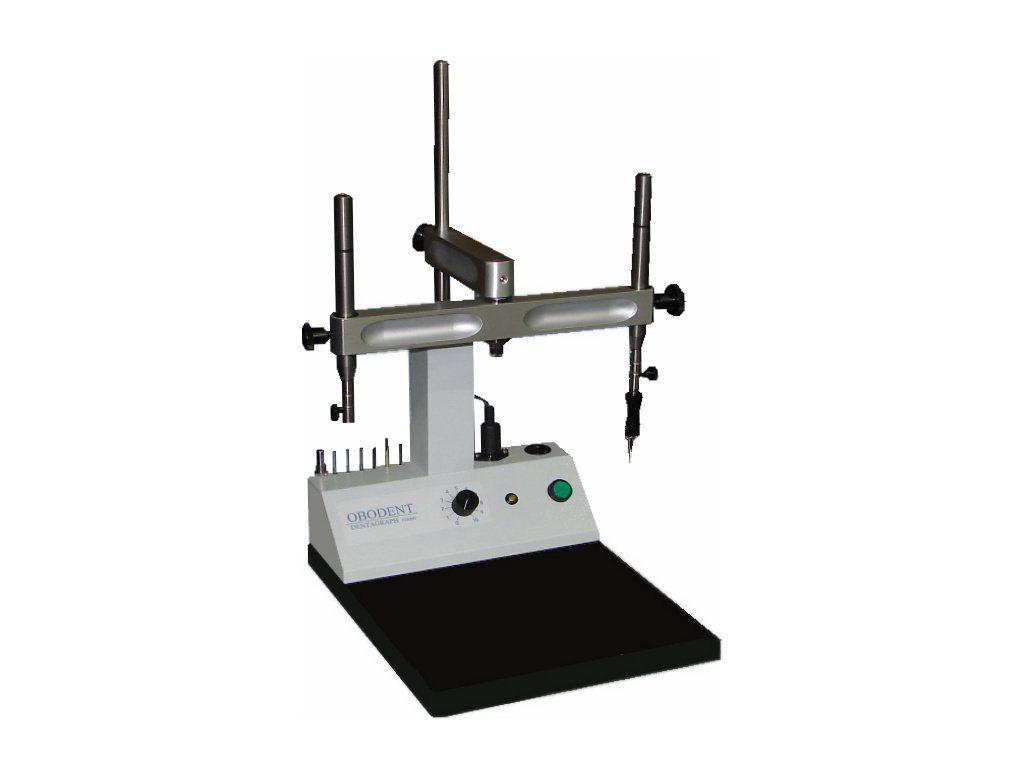

DENTAGRAPH combiOrder number: 20 25000 000Technical data: 100-230V, 50-60Hz, 20VA, 370x250x200mm
The DENTAGRAPH combi gives you the precision you need to make high-accuracy removable partial dentures.
The surveyor has a surface-ground granite baseplate, ball bearings for all moving parts, steplessly height-adjustable arms with screw locking and telescopic holders which are height-adjustable via a tension spring and
feature precise parallel guidance. Each unit is equipped with an integrated block out unit incl. a basic kit comprising heatable needles, depth gauges, markers and scraper.

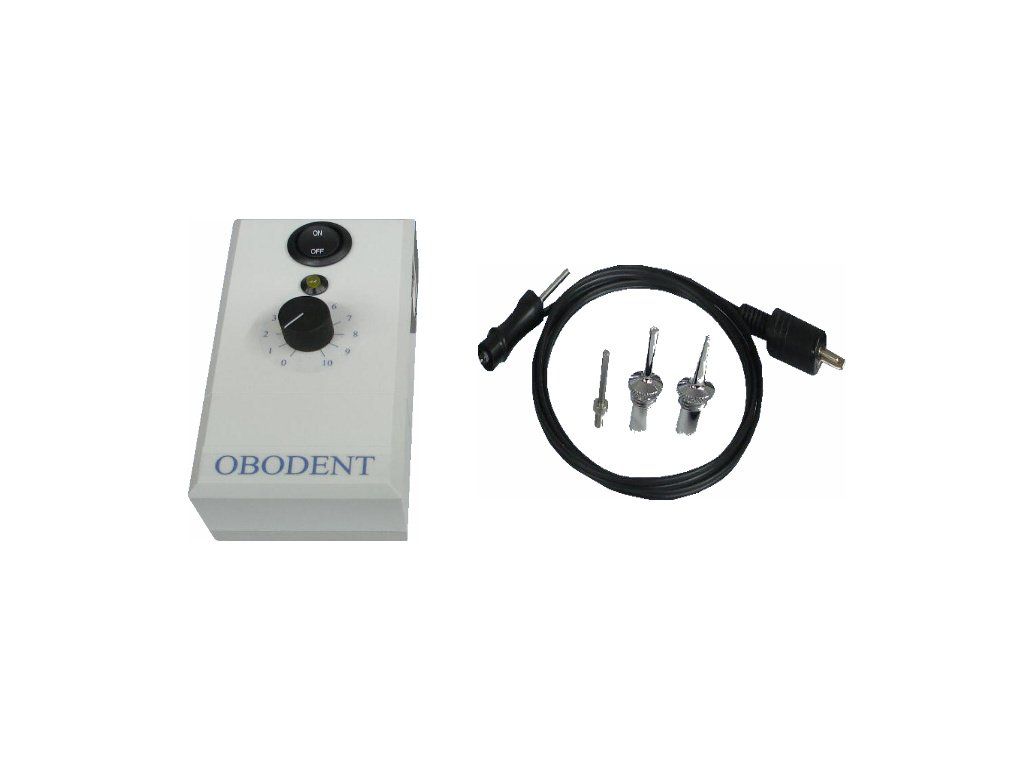

PARA WAXOrder number: 20 26 000 000Technical data: 100-230V, 50-60HZ, 4VA, 66x70x125mm
The PARA WAX is a handy modeling tool for the quick production of models
by electrically heated block-out needles (2 pcs included, optionally 0 °, 2 °, 4 ° or 6 °).

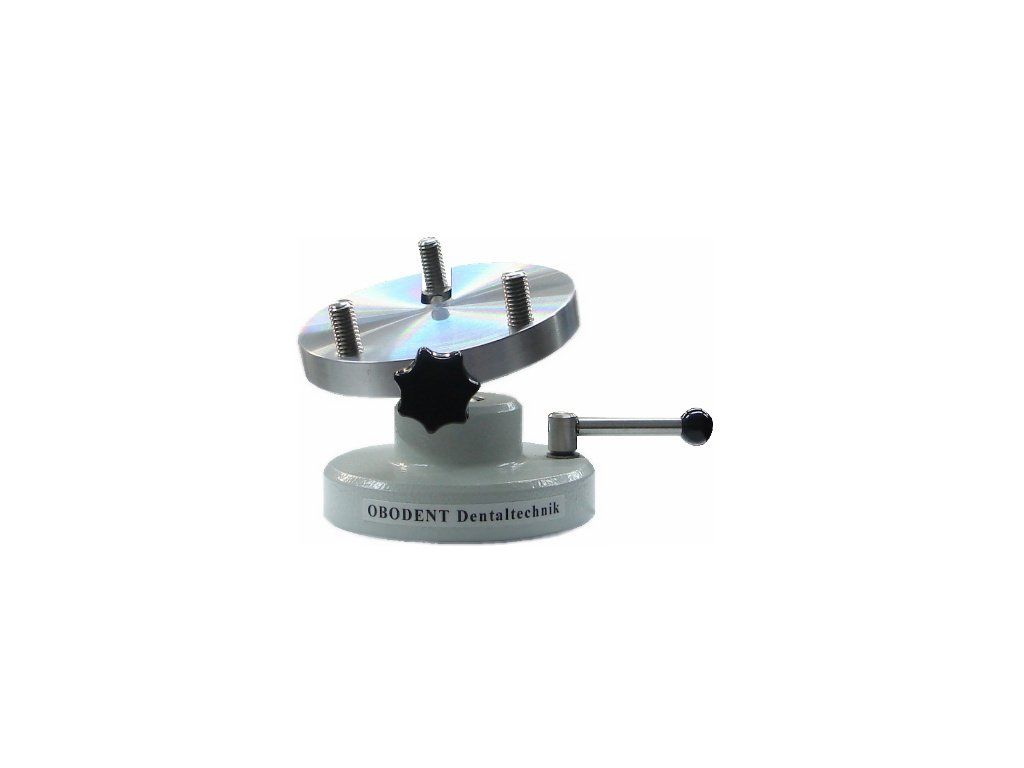

ModelleinspanntischOrder number: 20 27 000 000Technical data: 90x80mm (DxH)
Stepless tilting model platform with locking screw for models of various sizes.
Models can be locked quickly and securely between the three toothed clamping pins
by turning the star-shaped knob.

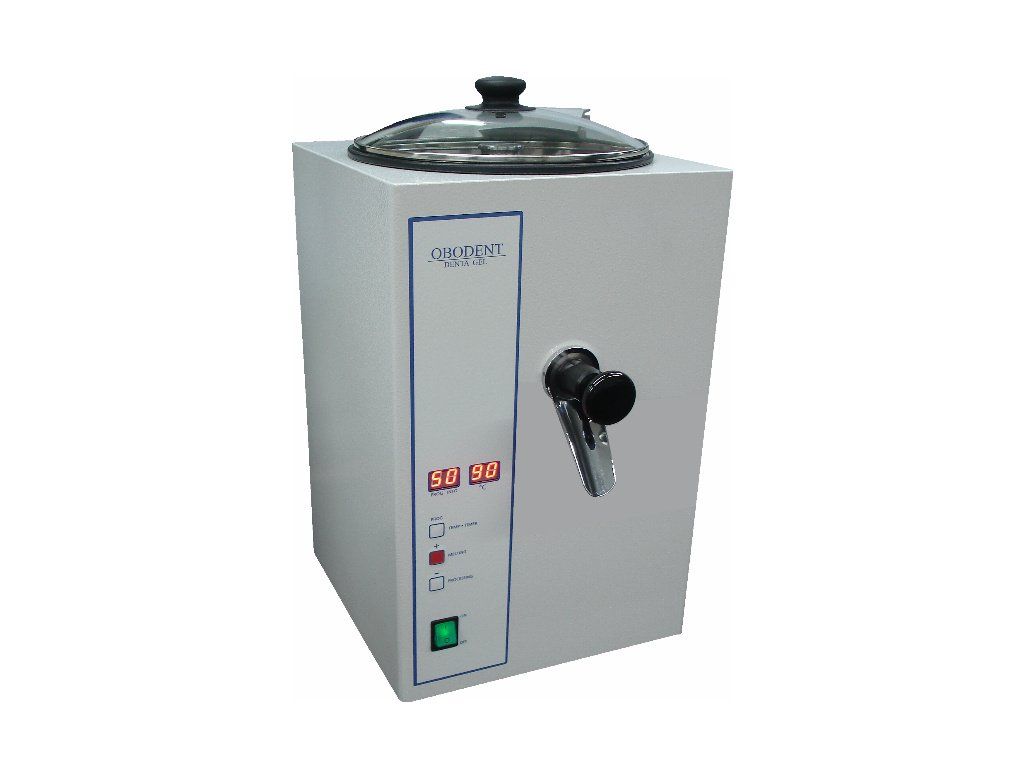

DENTA GEL 8KOrder number: 20 29000 000Technical data: 110-230V, 50-60HZ, 585VA, 290x350x520mm
DENTA GEL is a duplicating machine used for melting and mixing thermoreversible hydrocolloids.
Due to its electronic regulation and the robust construction, DENTA GEL offers a number of distinctive advantages:
• Easy to use, with 3 buttons, clearly arranged display.
• Gentle melting of the duplicating material.
• Highly efficient cutting and agitator made of stainless steel; automatic safety shutdown when opening the lid.
• individually programmable melting and processing temperature; weekly timer
• technically mature and high quality device.

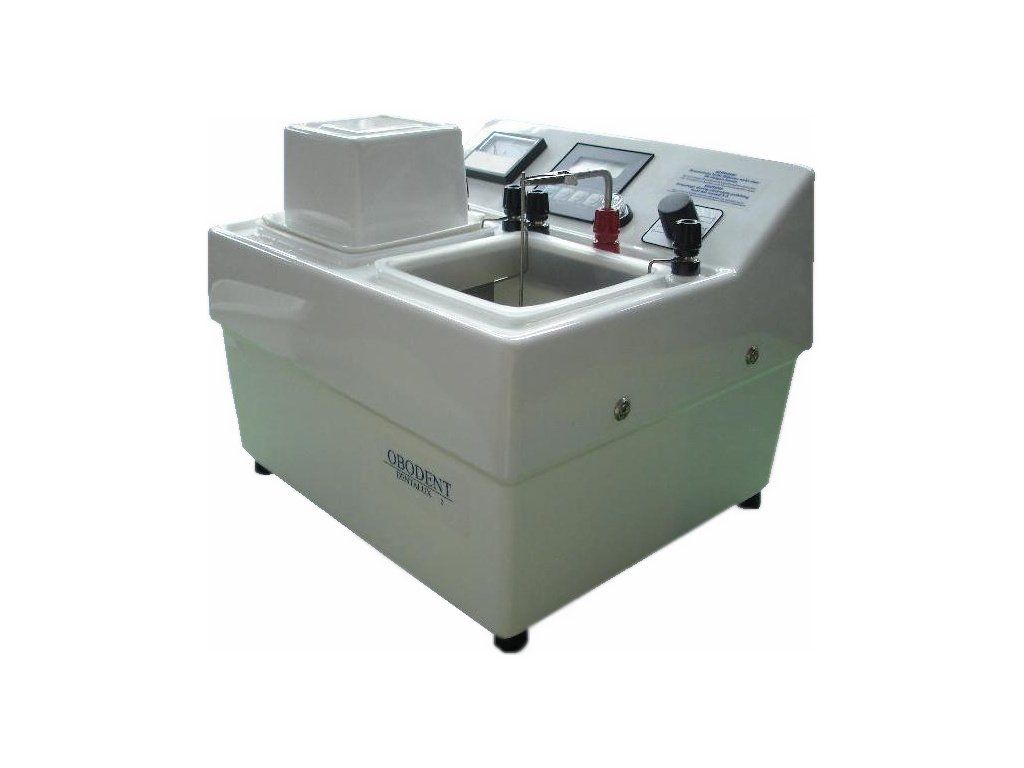

Dentalux
Order number: 20 47000 000
Technical data: 230V / 50Hz, 220VA, 320x280x230mm
DENTALUX is a technically sophisticated electrolytic polishing device for the simultaneous polishing of two prosthesis frameworks. It is easy to use, reliable and durable.

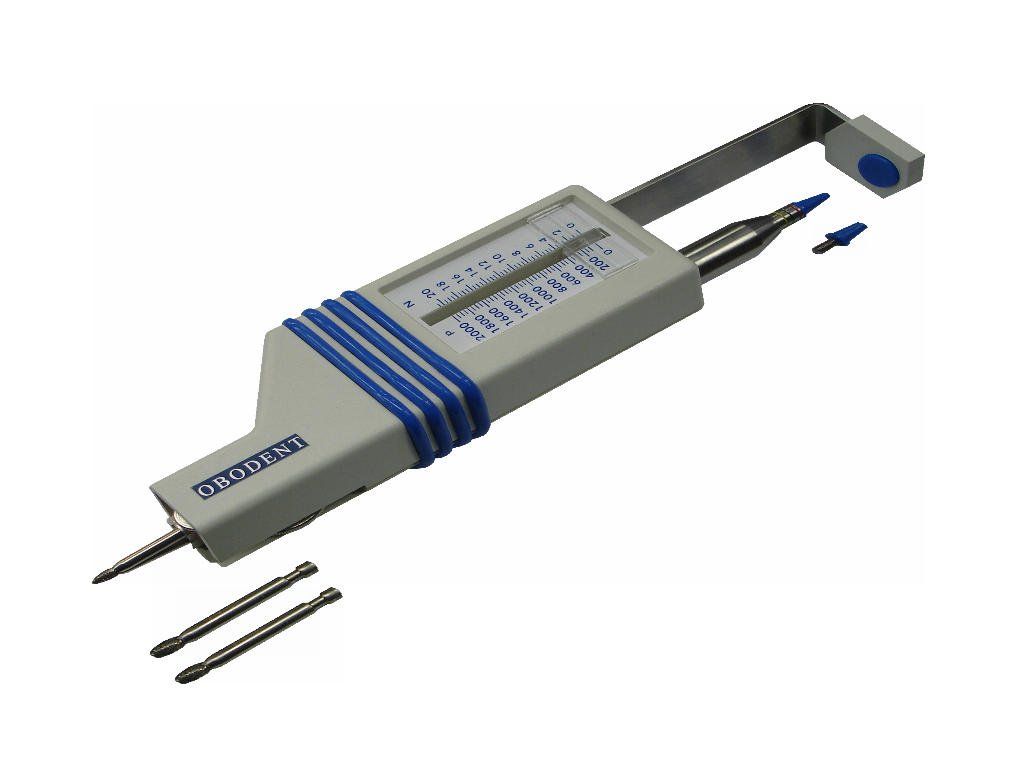

KONI METER
Order number: 20 52000 000
Technical data: 230x45x33.5mm
The KONI METER is a friction measuring device for crowns. It is simple to use and enables accurate measurement of friction between fixed and removable crowns.
The KONI METER allows the user to eliminate the risk of calculated guesswork and measure the actual retentive forces when inserting and withdrawing crowns.

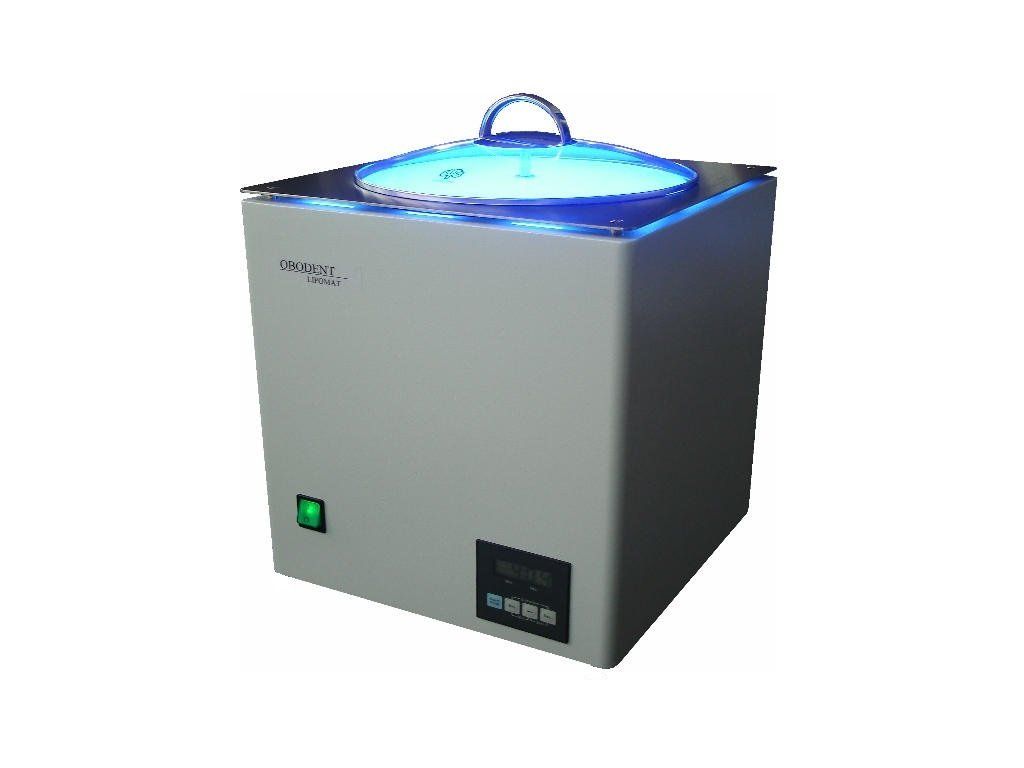

LIPOMAT MAXI
Order number: 20 57000 000
Technical data: 230V / 50HZ, 100VA, 300x300x370mm (WxDxH), emission range: 350-500nm, 12 fluorescent lamps of 9W each
LIPOMAT MAXI is a compact and powerful light polymerization device that can be used universally for the quick and rational curing of light-curing dental materials.
The arrangement of 12 UVA compact fluorescent lamps optimally illuminates the large polymerization chamber with an emission range of 350-550nm.

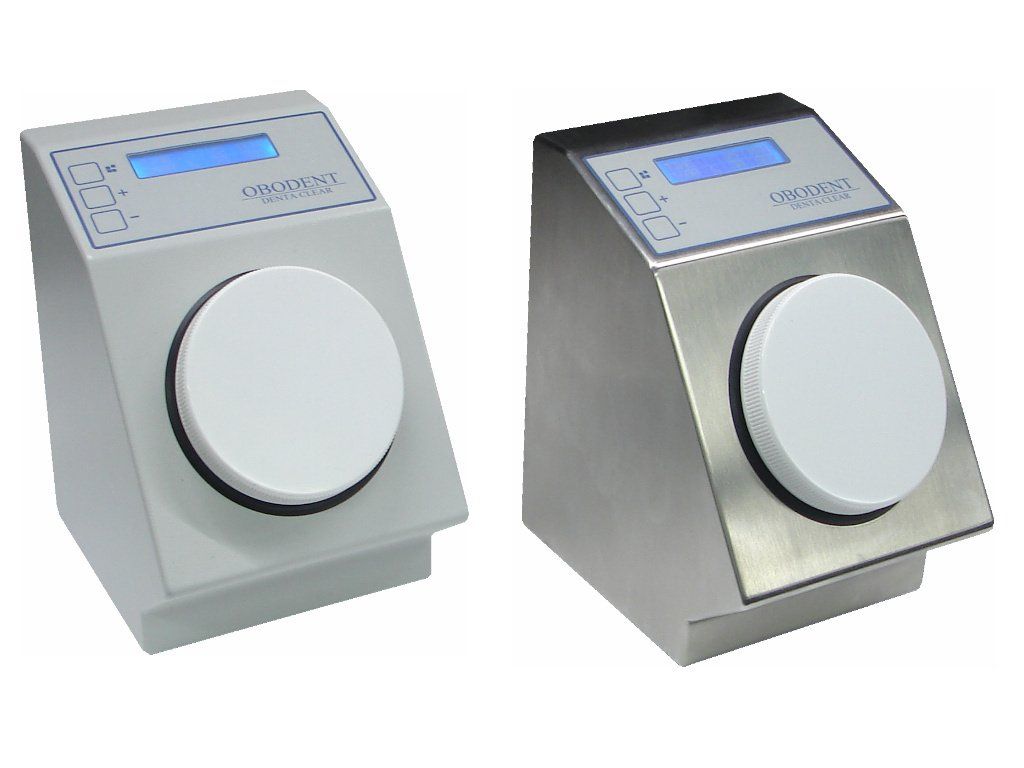

DENTA CLEAR
Order number: 20 60000 000
Technical data: 100-240AC 50 / 60HZ (external power supply),
140x200x180mm
DENTA CLEAR is a high-performance cleaning device that removes dirt and deposits from dental prostheses, crowns and bridges using moving polishing needles and a cleaning fluid based on a rotating magnetic field.
Both the polishing needles and the cleaning fluid ensure a gentle but thorough cleaning without chemically or mechanically damaging the structure or surface of the cleaning object.
Each of the thousands of polishing needles is rounded and with a size of 0.5x5mm it is ideal for removing dirt even in hard-to-reach places. In contrast to many other polishing needle cleaning devices, the changesMotor of the DENTA CLEAR alternately in clockwise or counter-clockwise rotation.
This guarantees that the cleaning object is not only cleaned faster, but also absolutely evenly.
The DENTA CLEAR is available in two different versions, which only differ in their external appearance:
1. Ground stainless steel,
2. Lacquered stainless steel (light gray).
A comprehensive set of accessories is included in the scope of delivery of the DENTA CLEAR:
2 cleaning cups (height: 71 or 85mm)
50g polishing needles
1 ltr. LIQUIBO cleaning liquid
1 external switching power supply
1 adapter plug with ON / OFF switch
1 holding magnet
1 pair of tweezers
1 measuring cup
